Applies To Vehicles With Headlamp Washing

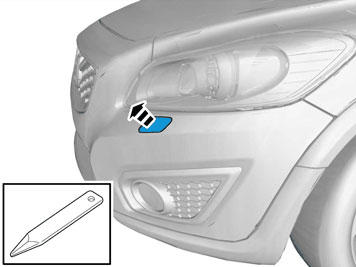

Fig 1: Pulling Out Cover
GLL171920Courtesy of VOLVO CARS CORPORATION

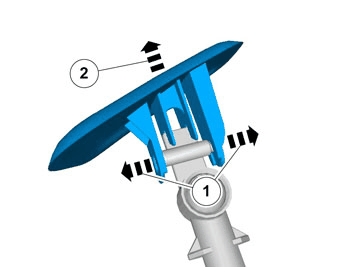

Fig 1: Removing Headlamp Washer Nozzle Cover
GLL171921Courtesy of VOLVO CARS CORPORATION
CAUTION:

Do not damage painted surfaces and high pressure washer nozzles.
