Combined Instrument Panel, R-Design

Fig 1: Identifying Ignition Switch Turned To Position 0

Courtesy of VOLVO CARS CORPORATION

NOTE:

Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

Fig 2: Identifying Steering Wheel In Lowest Position

Courtesy of VOLVO CARS CORPORATION

Adjust the steering wheel to the outermost and lowermost position.
Remove the two screws at the upper edge of the surround for the combined instrument panel.
Remove the surround.

Fig 3: View Of Instrument Panel Screws

Courtesy of VOLVO CARS CORPORATION

Remove the two screws at the sides of the instrument panel.
Raise it slightly and unhook it from the holder on the inside of the instrument panel.
Lift the instrument panel out and disconnect the connector.

NOTE:

Do not damage the instrument panel. The glass is easily scratched.

Fig 4: Installing Instrument Panel Connector

Courtesy of VOLVO CARS CORPORATION

Fig 5: View Of Instrument Panel Surround Screws

Courtesy of VOLVO CARS CORPORATION

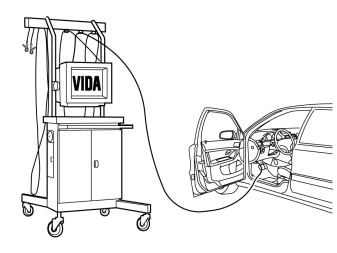

Fig 6: Identifying VIDA (Volvo Scan Tool) To Program Software

Courtesy of VOLVO CARS CORPORATION

Download software for the relevant vehicle type in accordance with the service information in VIDA (Volvo scan tool).
