Actuator Turbo Pressure (Vacuum) (2011-2012): Installation

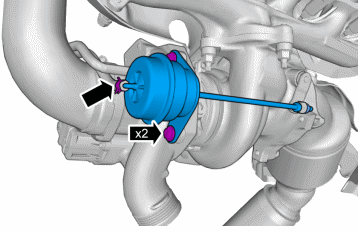

Fig 1: Identifying Turbo Charger Component Connections

Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

For Wastegate Control Valve Adjustment, see WASTEGATE CONTROL VALVE ADJUSTMENT

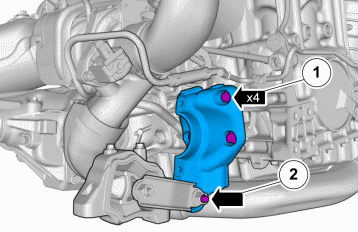

Fig 2: Identifying Bracket Bolts

Courtesy of VOLVO CARS CORPORATION

Install the following items:

1. Torque:  M10

   50 Nm

2. Torque:  Lower torque rod

   110 Nm

Install drive shaft right, see DRIVE SHAFT RIGHT

Fig 3: Locating Engine Undercover And Clips

Courtesy of VOLVO CARS CORPORATION
