Muffler, Front: Removal

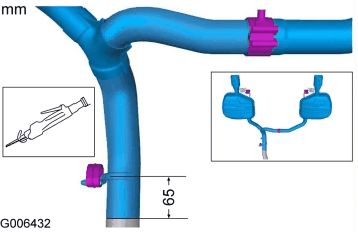

Fig 1: Identifying Exhaust Pipe Support Positions

Courtesy of VOLVO CARS CORPORATION

Torque:  M10

50 Nm

Fig 2: Identifying Exhaust Pipe Clamp

Courtesy of VOLVO CARS CORPORATION

Torque:  M10

50 Nm

Perform flange joint, assembly, see FLANGED JOINT, ASSEMBLING

Fig 3: Identifying Exhaust Installation Components

Courtesy of VOLVO CARS CORPORATION

Torque:  M8

24 Nm
