Induction Pipe (Turbo): Removal

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Engine Cover Removal

Courtesy of VOLVO CARS CORPORATION

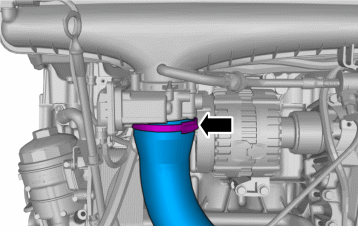

Fig 2: Identifying Connection Clamp

Courtesy of VOLVO CARS CORPORATION

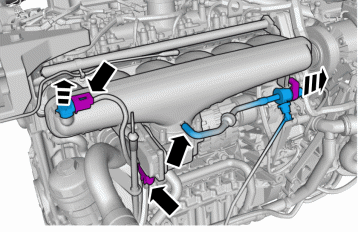

Fig 3: Identifying Intake Connecting Components

Courtesy of VOLVO CARS CORPORATION

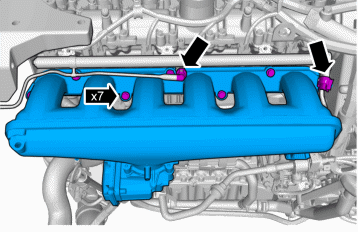

Fig 4: Identifying Intake Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: M7

17 Nm

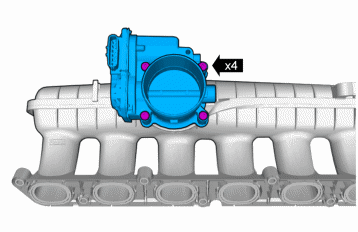

Fig 5: Identifying Throttle Housing Bolts

Courtesy of VOLVO CARS CORPORATION
