Exhaust Manifold (Non-Turbo; 2011-2012): Installation

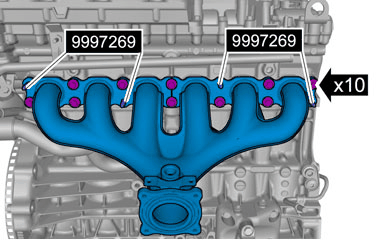

Fig 1: Identifying Special Service Tool 999 7269

Courtesy of VOLVO CARS CORPORATION

see 9997269

Torque:  M8

24 Nm

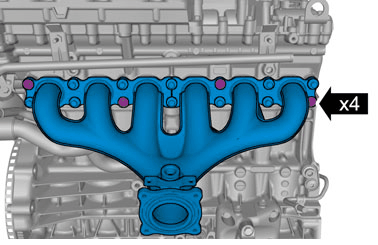

Fig 2: Installing Sequence Of Manifold Bolts

Courtesy of VOLVO CARS CORPORATION

Torque:  M8

24 Nm

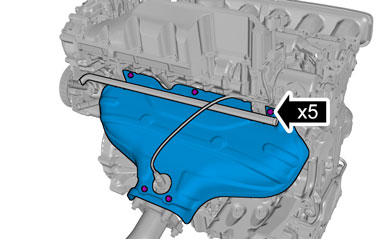

Fig 3: Exhaust Manifold Heat Shield

Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

Install catalytic converter, see CATALYTIC CONVERTER (NON-TURBO; 2011-2012)
