Exhaust Manifold (Non-Turbo; 2008-2010): Installation

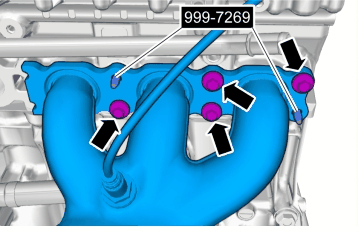

Fig 1: Guide Pins (9997269) Installed

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

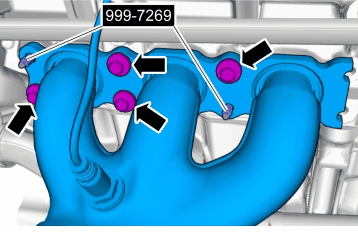

Fig 2: Guide Pins (9997269) Installed

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

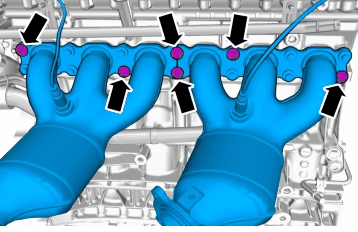

Fig 3: Identifying Exhaust Manifold Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

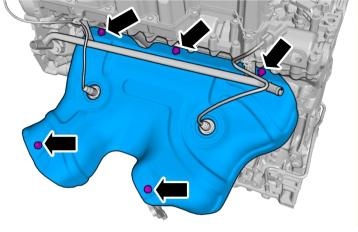

Fig 4: Identifying Heat Shield Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

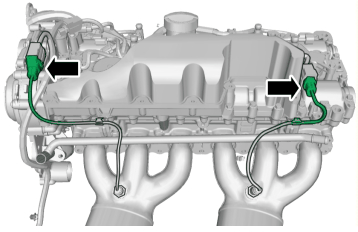

Fig 5: Identifying Heated Oxygen Sensor Connectors

Courtesy of VOLVO CARS CORPORATION

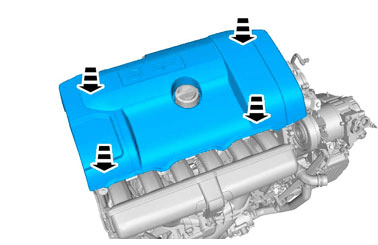

Fig 6: Installing Upper Engine Cover

Courtesy of VOLVO CARS CORPORATION
