Distribution Damper Intake Manifold (Non-Turbo): Removal

Remove the intake manifold. See INDUCTION PIPE .

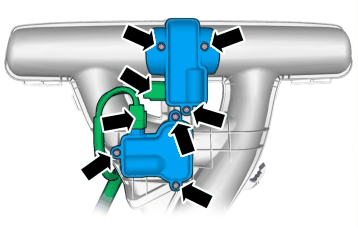

Fig 1: Identifying Distribution Damper

Courtesy of VOLVO CARS CORPORATION

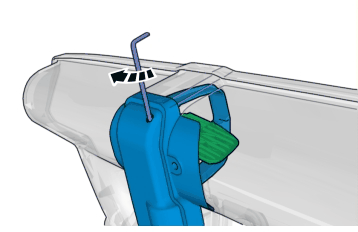

Fig 2: Identifying Screwing Damper

Courtesy of VOLVO CARS CORPORATION

If the damper has jammed in the open position it must be screwed back as shown in the illustration.

Make a hole at the mark and screw clockwise to close the damper.

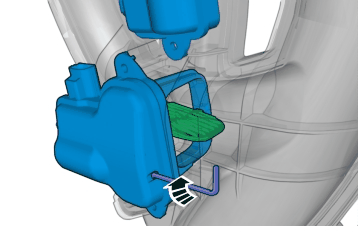

Fig 3: Identifying Screwing Damper

Courtesy of VOLVO CARS CORPORATION
