Catalytic Converter (Turbo): Removal

Remove the following items:

• Oxygen sensor (Catalyst monitor sensor) see OXYGEN SENSOR (CATALYST MONITOR SENSOR)
• bevel gear, see BEVEL GEAR .

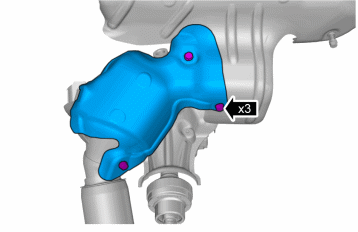

Fig 1: Identifying Heat Shield Retainers

Courtesy of VOLVO CARS CORPORATION

Torque:  M8

24 Nm

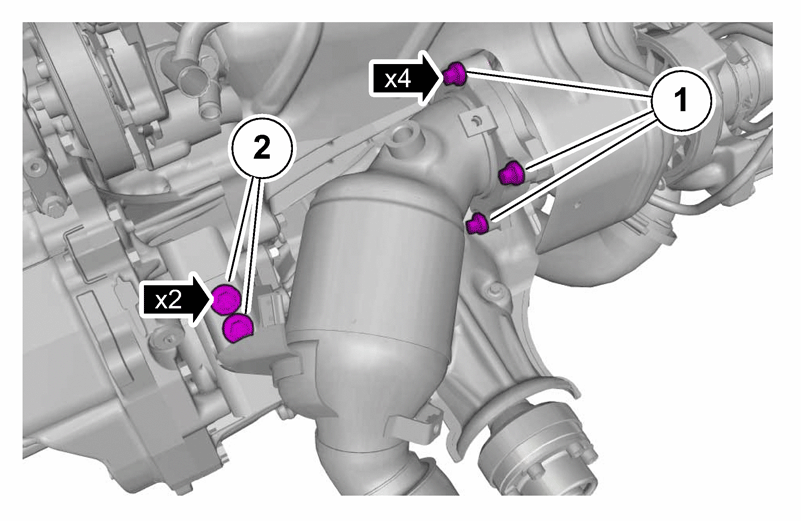

Fig 2: Catalytic Converter To Turbocharger Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Install the following items:

1. Torque:  Catalytic converter to turbocharger

   24 Nm

2. Torque:  M8

   24 Nm

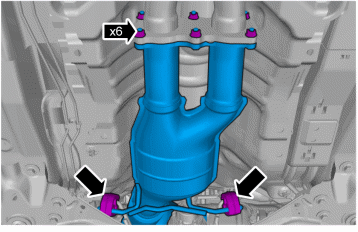

Fig 3: Identifying Exhaust Rubber Support Hangers

Courtesy of VOLVO CARS CORPORATION

Torque:  M8

24 Nm
