Catalytic Converter (Non-Turbo; 2011-2012): Removal

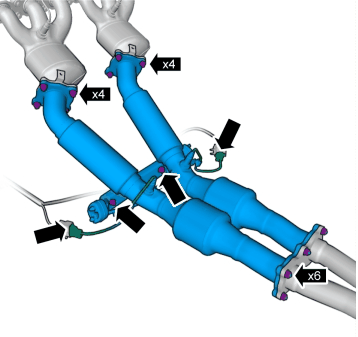

Fig 1: Identifying Catalyst To Exhaust Manifold Bolts

Courtesy of VOLVO CARS CORPORATION

1. Torque:  Catalyst to exhaust manifold

   27 Nm

2. Torque:  Catalyst to exhaust system

   24 Nm

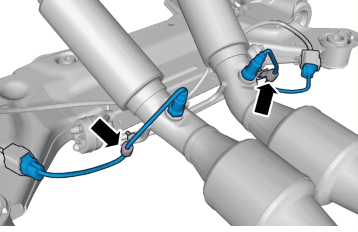

Fig 2: Identifying Oxygen Sensor Cable Stays

Courtesy of VOLVO CARS CORPORATION

see 9995543

Torque:  Catalyst monitor sensor

45 Nm
