Catalytic Converter (Non-Turbo; 2008-2010): Removal

Follow instructions for lifting points body frame, see JACKING POINTS BODY

Remove oxygen sensor (lambda probe) see OXYGEN SENSOR (CATALYST MONITOR SENSOR)

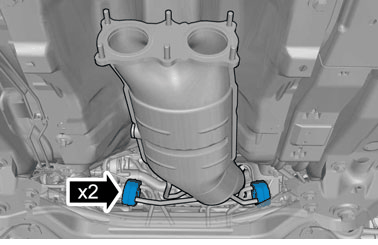

Fig 1: Identifying Exhaust Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Torque:  M8

24 Nm

Fig 2: Identifying Exhaust Support Hangers

Courtesy of VOLVO CARS CORPORATION

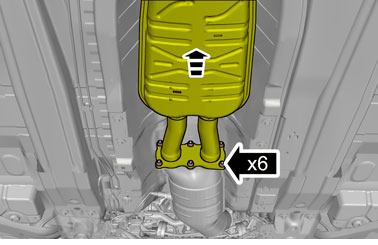

Fig 3: Identifying Exhaust Pipe Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Torque:  M8

24 Nm
