Parking Assistance, Camera, Rear: Preparations

Fig 1: Disconnect The Battery Negative Lead

Courtesy of VOLVO CARS CORPORATION

Turn the ignition key to position 0 .
Disconnect the battery negative lead.
NOTE:
Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

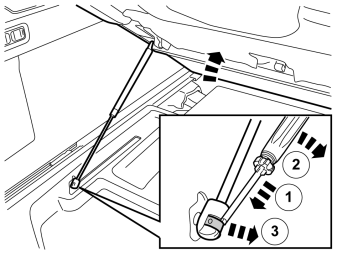

Fig 2: Remove The Gas Strut's Lower Mounting

Courtesy of VOLVO CARS CORPORATION

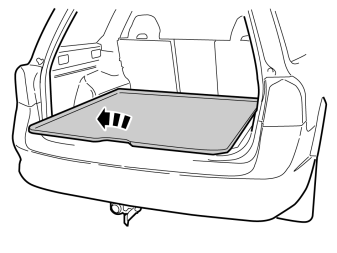

Fig 3: Identifying Trunk Floor Liner

Courtesy of VOLVO CARS CORPORATION

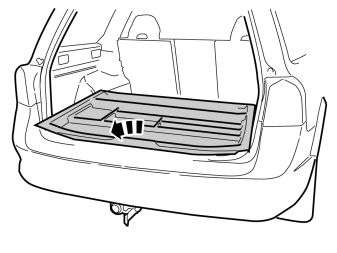

Fig 4: Identifying Trunk Floor Organizer

Courtesy of VOLVO CARS CORPORATION

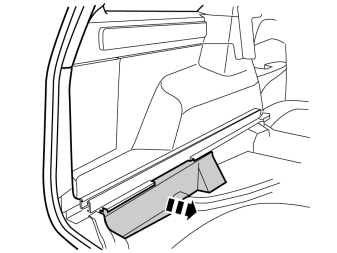

Fig 5: View Of Trunk Floor Side Panel

Courtesy of VOLVO CARS CORPORATION
