Combined Instrument Panel [2009-2017]: Removal

GLL166009Courtesy of VOLVO CARS CORPORATION
CAUTION:

The Control modules may only be replaced one at a time. When replacing more than one Control module: remove the old one and install a new one, complete with software download, before next control module is removed.

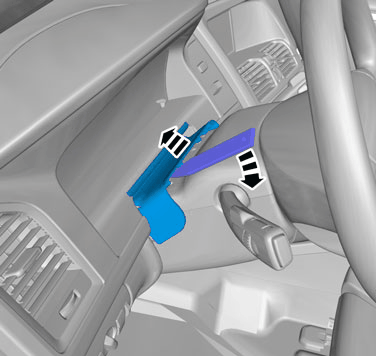

GLL171577Courtesy of VOLVO CARS CORPORATION

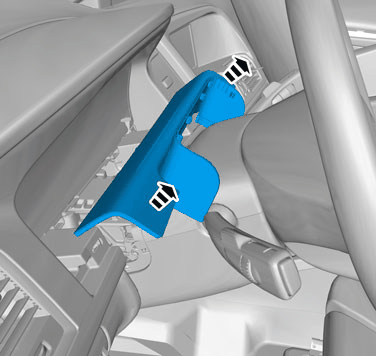

GLL171578Courtesy of VOLVO CARS CORPORATION

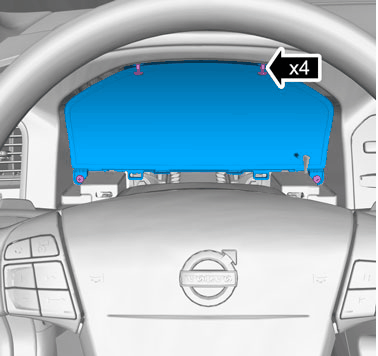

GLL171579Courtesy of VOLVO CARS CORPORATION

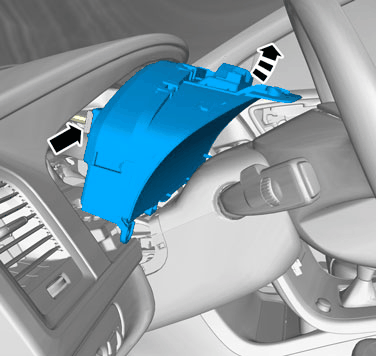

GLL171580Courtesy of VOLVO CARS CORPORATION
CAUTION:

Take extra care when handling the component.

NOTE:

Make sure that the component terminals are not bent or damaged.
