Right-Hand Drive Vehicles

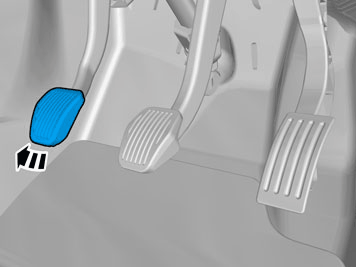

Fig 1: Removing Original Pedal Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

The part(s) are not to be reused.

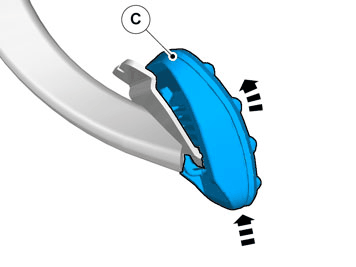

Fig 2: Installing New Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook the pedal rubber onto the pedal at the lower edge and pull the pedal rubber upward.

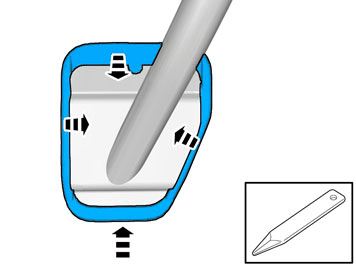

Fig 3: Use Tool as Needed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.
