Checking The Pump Capacity

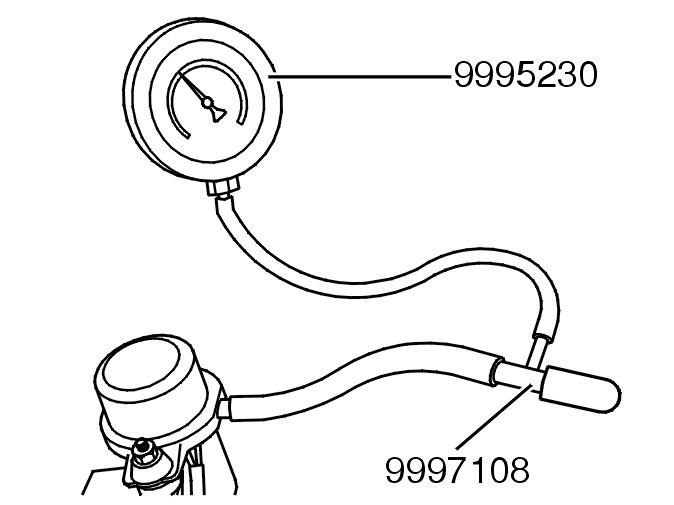

Fig 1: Vacuum Gauge Installed (9995230, 9997108)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the quick-release connector on the vacuum pump. Install: see 9997108 with the plugged end on the pump

Connect: see 9995230 on: see 9997108 .

Install the connector for the pump. Read off the value on: see 9995230 .

The value must be between 80-90 kPa  negative pressure. If not replace the pump. See: VACUUM PUMP, BRAKE BOOSTER .
