Preparations, Passenger Compartment

Fig 1: Identifying Ignition Switch Turned To Position 0

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

Fig 2: Identifying Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Sill Molding

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the sill molding by first pulling at the front edge and then straight up so the clips release.

Fig 4: Identifying Floor Mat

Courtesy of VOLVO CARS OF NORTH AMERICA.

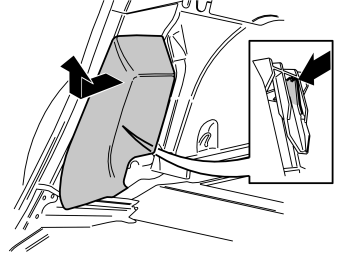

Fig 5: View Of Side Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grasp the upper edge of the right-hand side cushion. Pull the side cushion forward so that the clip on the reverse releases.
Slide the side cushion up. Remove the side cushion.

Applies to right-hand drive cars

Fig 6: Identifying Sill Trim Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the top edge of the sill trim panel in the right-hand rear door inwards until the clips on the inside release. Then continue down and pull the panel upwards until the remaining two clips on the underside release.

Fig 7: Identifying B-Pillar Rubber Moldings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull off the rubber moldings at the rear edge of the right-hand front door and at the front edge of the right-hand rear door. This releases the lower panel on the B post.
Pull the bottom edge of the lower panel on the B-pillar until the two bottom clips release.

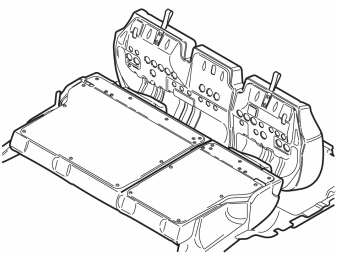

Fig 8: Identifying Rear Seat Cushions And Backrest In Forward Position

Courtesy of VOLVO CARS OF NORTH AMERICA.
