Hydraulic-Vacuum-Hydraulic Brakes - Removal, Replacement And Installation
>>
Brake Line With Connections
>>
Rear Brake Flexible Hose (2007-08)
>>
Removal
>>
Vehicles With Manual Parking Brake
Vehicles With Manual Parking Brake

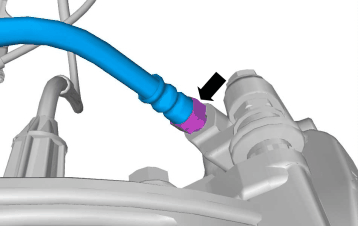

Fig 1: Remove/Install Brake Hose
Courtesy of VOLVO CARS CORPORATION
Torque:
Brake hose to rear brake caliper
18 Nm
Courtesy of VOLVO CARS CORPORATION
