Combined Instrument Panel: Removal

CAUTION:

The control module must be removed, reinstalled and downloaded with software before the control module is replaced.

Fig 1: Identifying Ignition Switch In OFF Position

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Steering Column Cover

Courtesy of VOLVO CARS CORPORATION

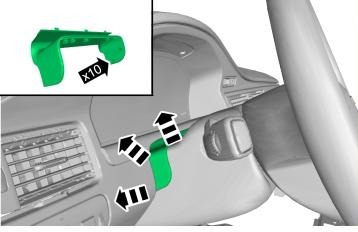

Fig 3: Removing Steering Column Cover

Courtesy of VOLVO CARS CORPORATION

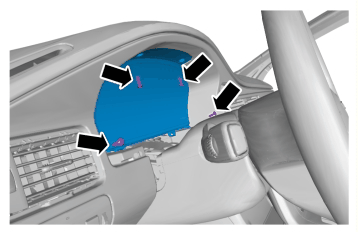

Fig 4: Locating Instrument Panel Screws

Courtesy of VOLVO CARS CORPORATION

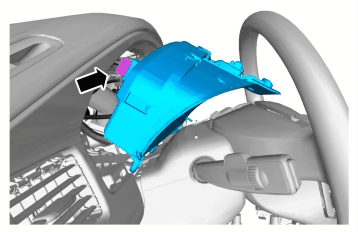

Fig 5: View Of Instrument Panel Connector

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

NOTE:

Make sure that the component terminals are not bent or damaged.
