Rear Brake Flexible Hose (2007-08): Removal: Notes

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel. See WHEELS

Fig 1: Identifying Brake Bleeding

Courtesy of VOLVO CARS CORPORATION

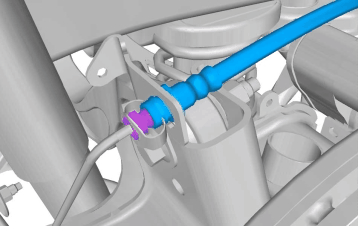

Fig 2: Remove/Install Brake Hose

Courtesy of VOLVO CARS CORPORATION

WARNING: Be prepared to collect escaping fluid.

Torque: 6 mm diameter brake line

14 Nm
