Installing Clutch Cylinder (MT)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

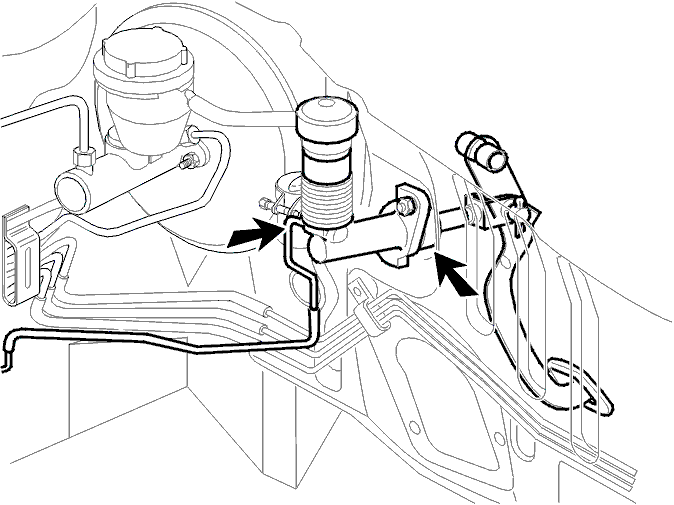

Fig 1: Removing/Installing Clutch Cylinder (MT)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the clutch cylinder and cowl wall.

Install

new gasket on clutch cylinder.
position the clutch cylinder.
the pipe, finger-tight.
the clutch cylinder, torque 13 Nm.
