Fill and bleed the hydraulic clutch system

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

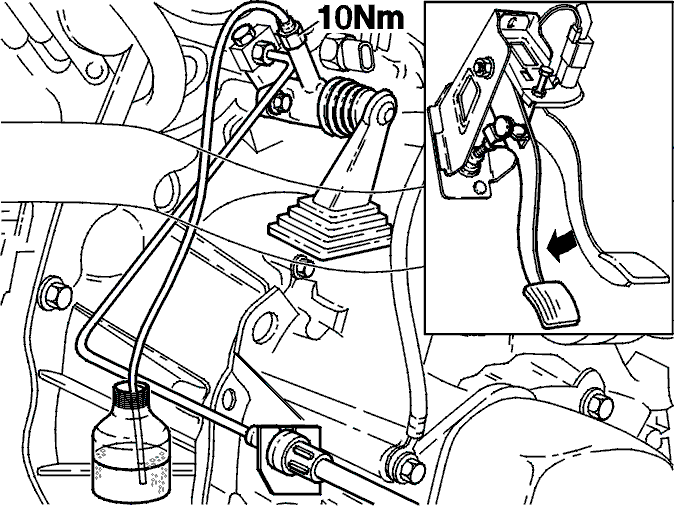

Fig 1: Filling/Bleeding Hydraulic Clutch System
GLL115755

Fill as follows:

Open the bleed nipple.

Fill the reservoir with brake fluid (DOT4+).

Close the bleed nipple when the brake fluid begins to flow out.

Bleed as follows:

Connect a hose to the bleed nipple.

Open the bleed nipple.

Depress the clutch pedal slowly. Repeat until only brake fluid, and no air, comes out.

Shut the bleed nipple. Tighten to 10 Nm.

Remove the hose. Install the seal plug.
