Installing the Vacuum Control Valve

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

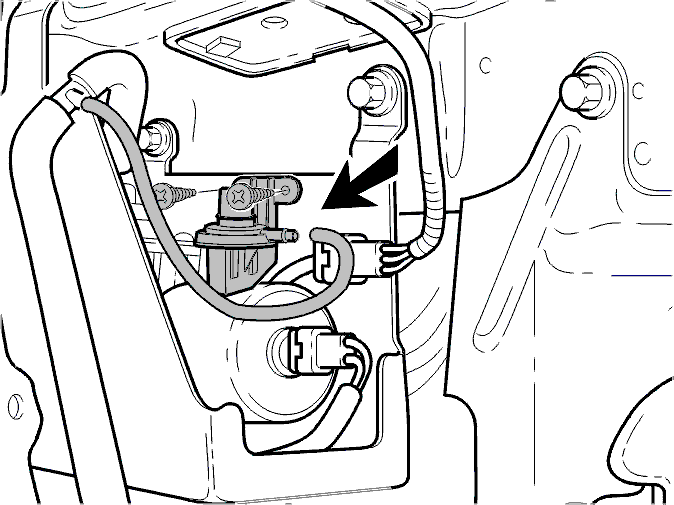

Fig 1: Identifying Vacuum Hose, Front Screw And Rear Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the mating surfaces
Position the valve by first installing the front screw. Install the rear screw. Tighten the screws
Reconnect the connector (press in the retaining clip while connecting the connector)
Connect the vacuum hose to the valve.
