Removing the Master Cylinder

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

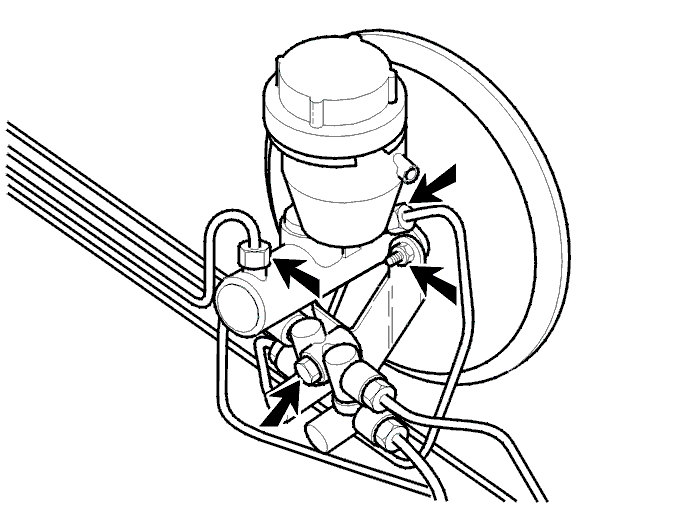

Fig 1: Removing Master Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

MT: the hose to the clutch cylinder, seal it off.
the brake fluid level sensor connector.
the connector support protective cap.
the preheating hose.
the vacuum hose from the power brake booster.
