Replacing the Master Cylinder On Left-Hand Drive Cars With Manual Transmissions: Removal: Preparations
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The master cylinder must not be opened. Reassembling it requires special equipment and facilities.

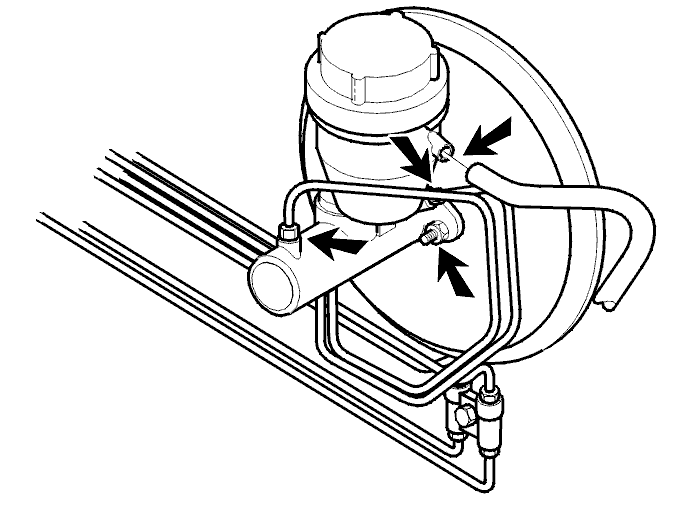

- Ignition off
- Remove the relay box and put it to one side
- Clean the master cylinder and the area around it
- Place cloths or paper under the master cylinder to protect painted surfaces from the brake fluid
- Press the brake pedal several times until it becomes firm. This is to eliminate the remaining vacuum in the system
- Drain the brake fluid reservoir.
