Wiper Mechanism, Windshield: Remove

NOTE:

Removal steps in this procedure may contain installation details.

CAUTION:

Make sure that the motor is in the park position.

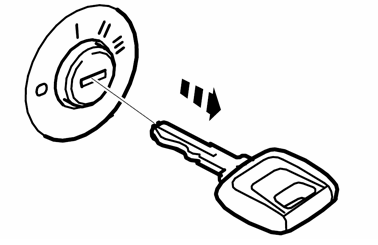

Fig 1: Remove Key From Ignition

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the plenum cover, see PLENUM CHAMBER

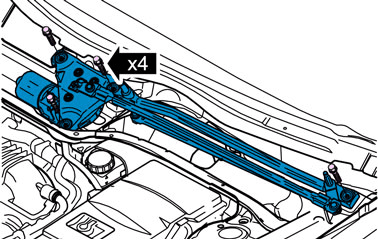

Fig 2: Identifying Wiper Mechanism Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: M6

10 Nm
