Wiper Arm: Remove: Tighten

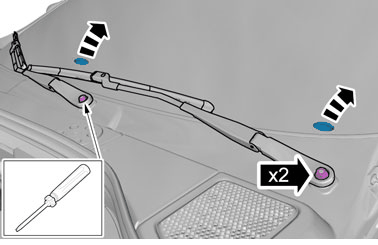

Fig 1: Identifying Windshield Wiper Arm Screws
GLL169500Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  Windshield wiper arm

21 Nm

Fig 2: View Of Special Tool 9814088
GLL167577Courtesy of VOLVO CARS OF NORTH AMERICA.

see 9814088
