Headlight Washers: Remove

Remove the following items:

• Headlamps, see HEADLAMPS
• Cover bumper front, see COVER BUMPER FRONT (2004-2009), COVER BUMPER FRONT (B5244S4; B5244S7; 2010), or COVER BUMPER FRONT (B5254T7; 2010-2011)

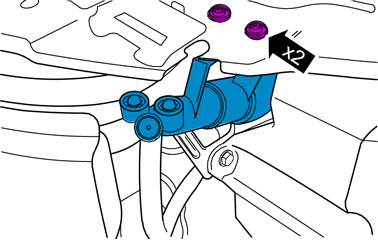

Fig 1: Identifying Headlight Washer Components (1 of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

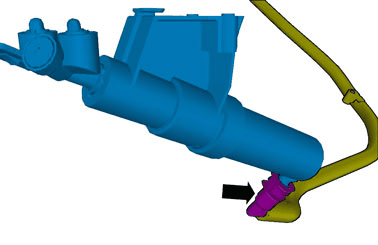

Fig 2: Identifying Headlight Washer Components (2 of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
