Rear Door Module (RDM): Remove

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove panel side door rear, see PANEL REAR DOOR

NOTE:

Make sure that the component terminals are not bent or damaged.

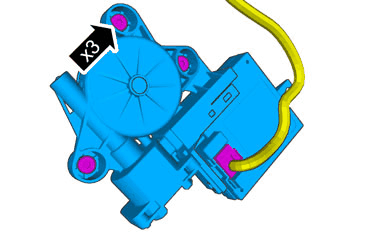

Fig 2: Identifying Rear Door Module (RDM) Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: M6

10 Nm
