Removing The Cigarette Lighter/Electrical Socket

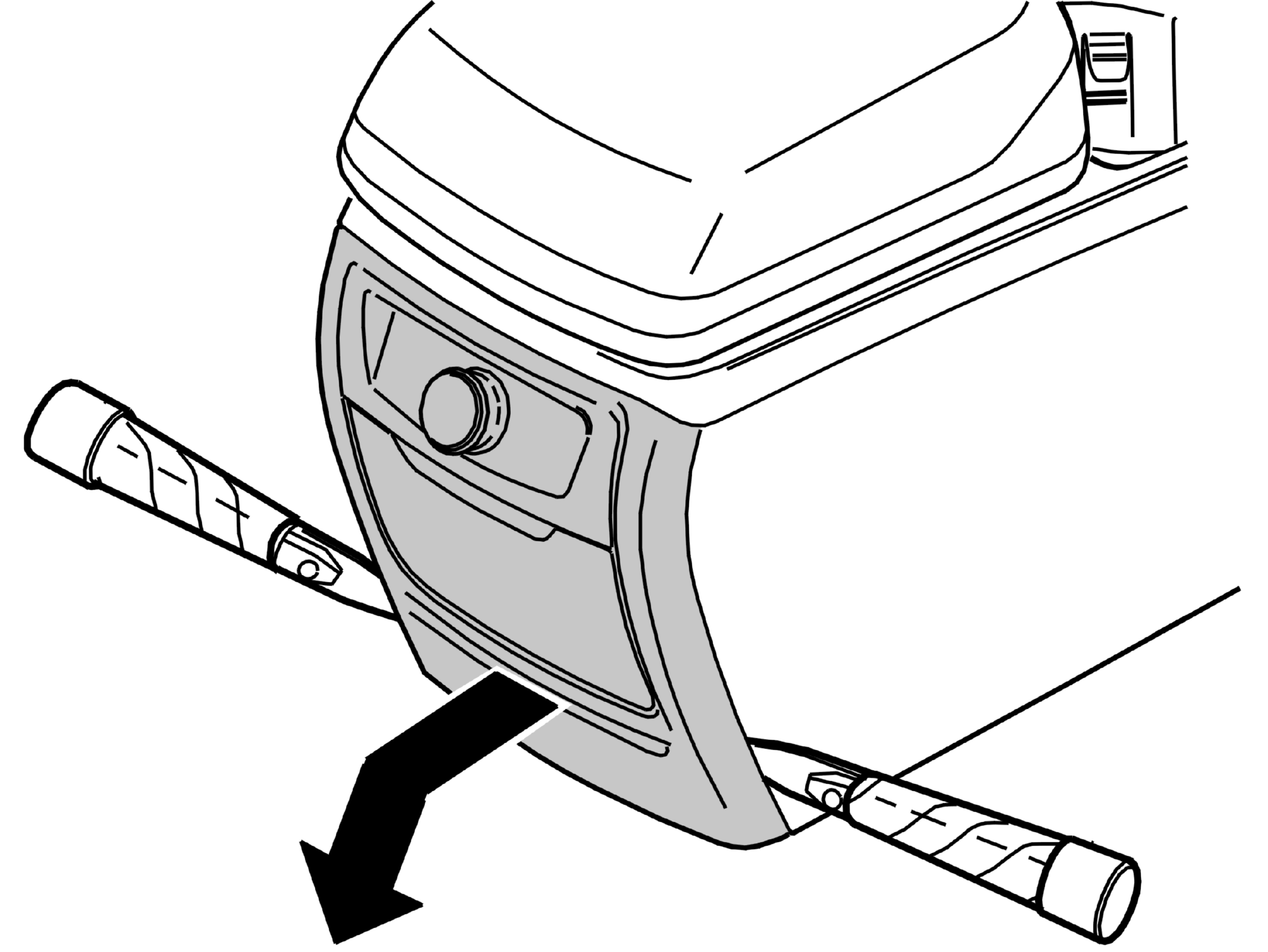

Fig 1: View Of Ashtray Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rear panel.

Disconnect the connector from the ashtray panel.

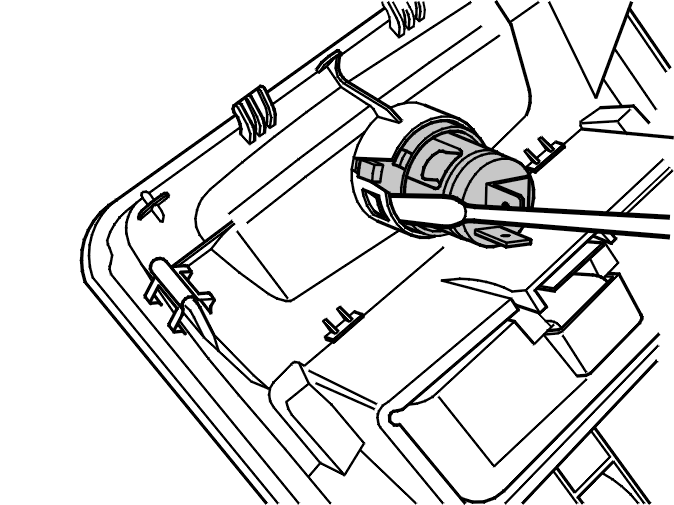

Fig 2: Identifying Cigarette Lighter/Electrical Socket Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the catches (as illustrated) using a small screwdriver. Press out the cigarette lighter/electrical socket.
