Mobile Computing Services: Notes

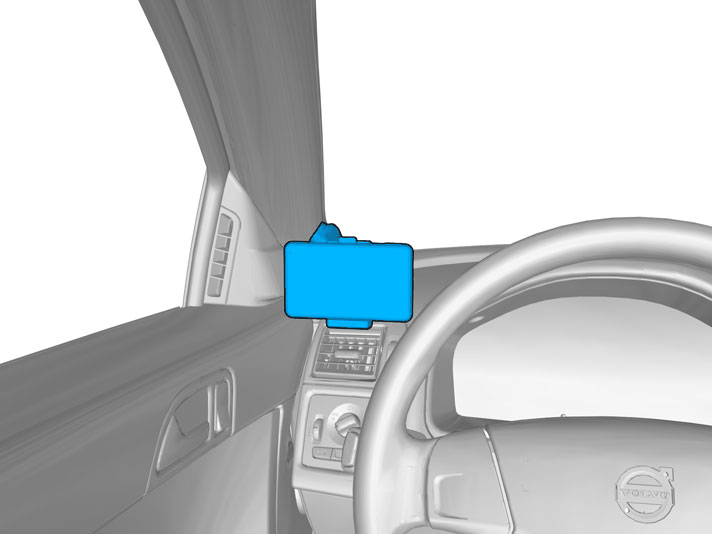

Fig 1: Identifying Portable Navigation System

GLL179129

Courtesy of VOLVO CARS OF NORTH AMERICA.

Navigation system, portable

Equipment

Fig 2: Snow Chain Toolbox

GLL100128

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Drill

GLL156216

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Drill Bit

GLL156222

Courtesy of VOLVO CARS OF NORTH AMERICA.

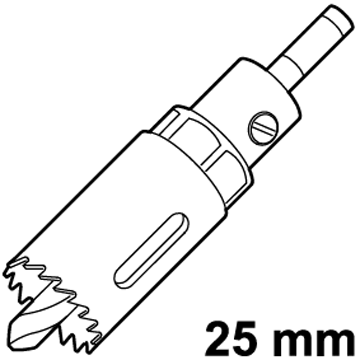

Fig 5: Identifying Drill Bit

GLL167922

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Identifying Special Tool 9512932

GLL169446

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Identifying Measuring Tape

GLL174996

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Identifying Removal Tool

GLL156252

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Weatherstrip Tool

GLL156220

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 10: Wrench

GLL156219

Courtesy of VOLVO CARS OF NORTH AMERICA.

Kit contents

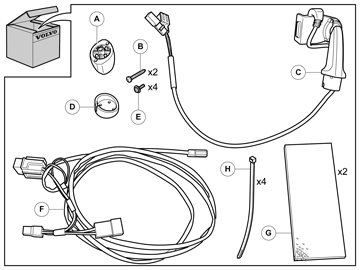

Fig 11: Identifying Kit Contents

GLL177587

Courtesy of VOLVO CARS OF NORTH AMERICA.

Operation Number(s): 39730

Special tools

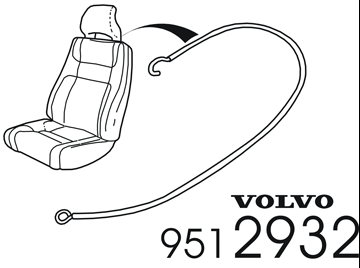

Courtesy of VOLVO CARS OF NORTH AMERICA.	951 2932 Tension spring Tool number: 951 2932 Tool description: Tension spring Tool boards: 80
