Right-Hand Drive Vehicles

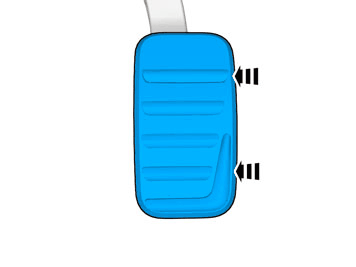

Fig 1: Start on the Long Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook the pedal rubber onto the long side of the accelerator pedal.

Fig 2: Pull the Edges Over

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.

Fig 3: Use Tool As Needed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Verify With Mirror

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Using a mirror check that the pedal rubber covers the edges of the pedal.

Fig 1: Removing Original Pedal Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

The part(s) are not to be reused.

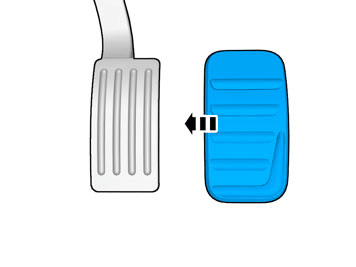

Fig 2: Installing New Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook the pedal rubber onto the pedal at the lower edge and pull the pedal rubber upward.

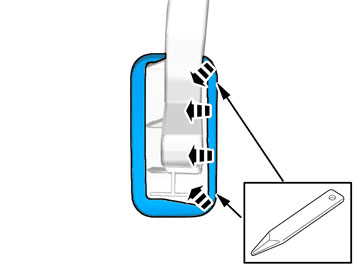

Fig 3: Use Tool as Needed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.
