Vacuum Pump, Brake Booster, Replacing: Removal

NOTE:

Removal steps in this procedure may contain installation details.

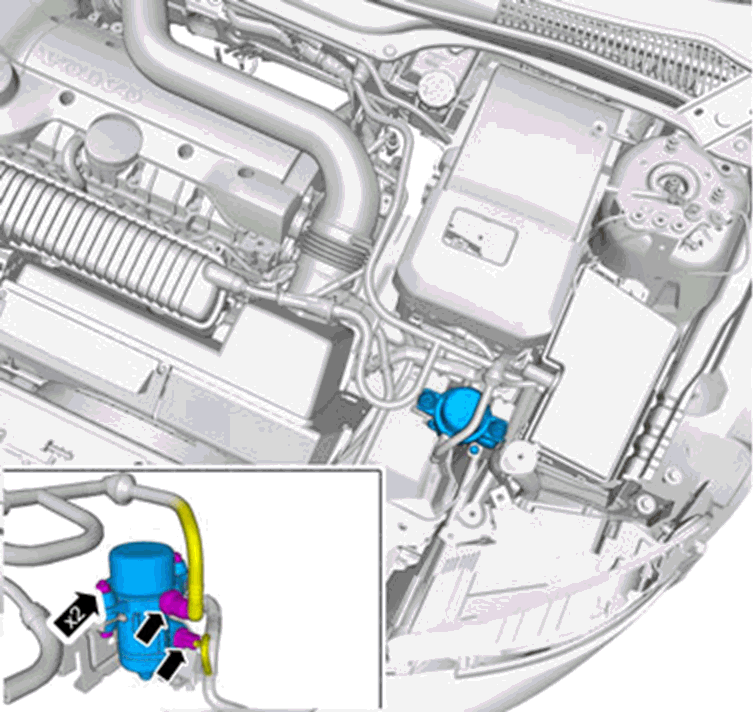

Fig 1: Identifying Vacuum Tubes
G00491488Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  M6

10 Nm
