Installing The Vacuum Hose

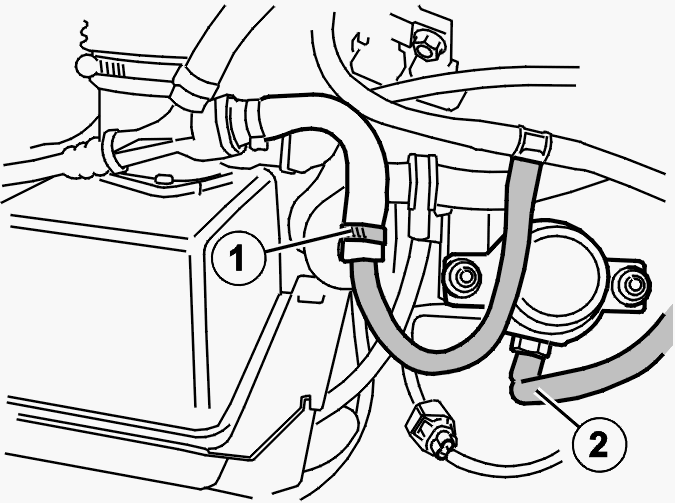

Fig 1: Identifying Vacuum Hoses And Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the vacuum hose
• the vacuum hose on the pump (2)
• the vacuum hose on the hose for the intake manifold
• the clamp (1)

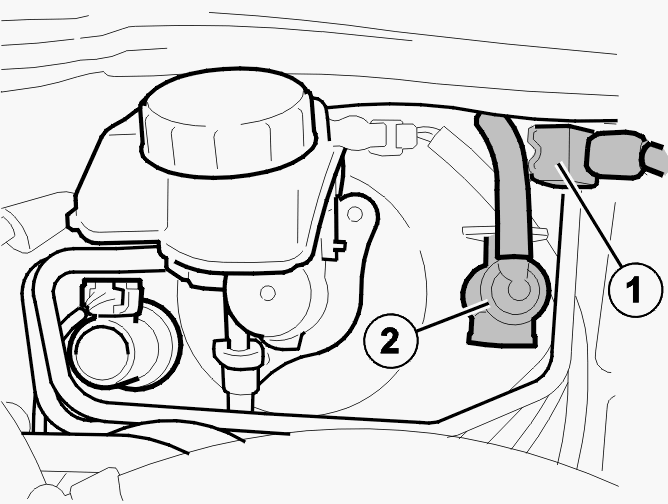

Fig 2: Identifying Control Valve And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the connector (1)
• the control valve (2)

HINT: Lubricate the control valve using soap solution for easier installation.
