Installing The Protective Covers

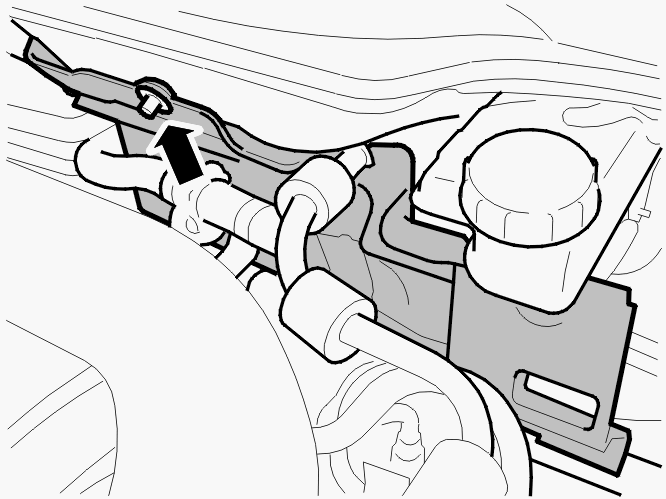

Fig 1: Identifying Plastic Nut And Protective Cover For Firewall

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the protective cover for the firewall
• the plastic nut

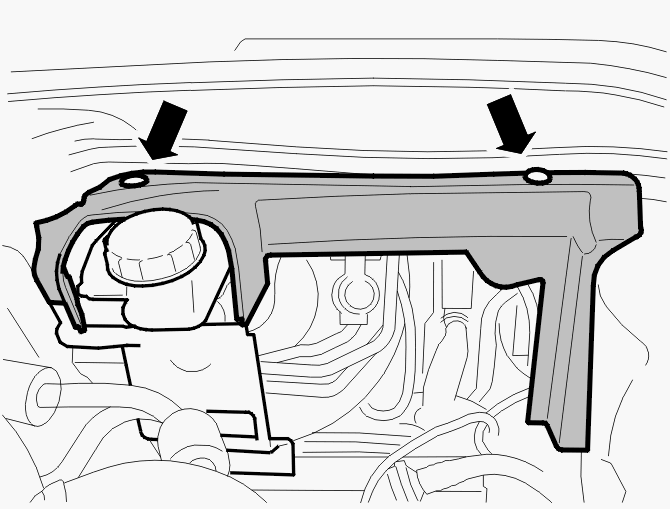

Fig 2: Identifying Protective Cover And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the protective cover over the brake fluid reservoir.

Carefully lift up the cowl. Install the 2 clips for the protective cover.

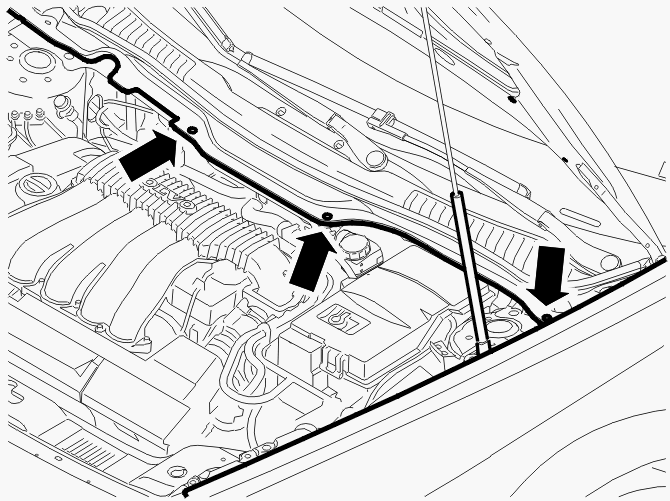

Fig 3: Identifying Cowl And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the 3 clips holding the cowl.
