Setting The Geographical Area

Press in the button (1) for between 3-6 seconds. The figure for the set range (1-15) is then displayed.

Press the button repeatedly until the relevant geographical area is displayed. Wait until the display shows again.

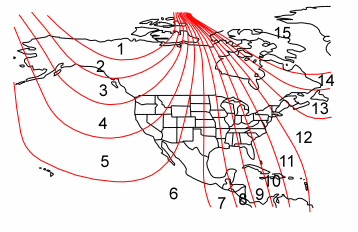

Fig 1: Identifying North American Geographical Area
GLL156237Courtesy of VOLVO CARS CORPORATION

North America
