Setting The Geographical Area

Fig 1: View Of Rear View Button

Courtesy of VOLVO CARS CORPORATION

Ignition on.

Press in the button (1) for at least 3 seconds. The figure for the set range (1-15) is then displayed. See the illustration.

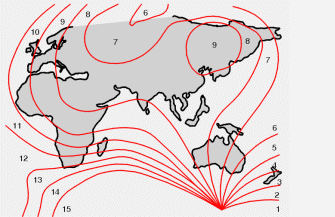

Fig 2: Identifying Geographical Area (1 of 2)

Courtesy of VOLVO CARS CORPORATION

Press the button repeatedly until the number (1-15) for the relevant geographical area is displayed. After approximately 10 seconds the display reverts to the compass direction.

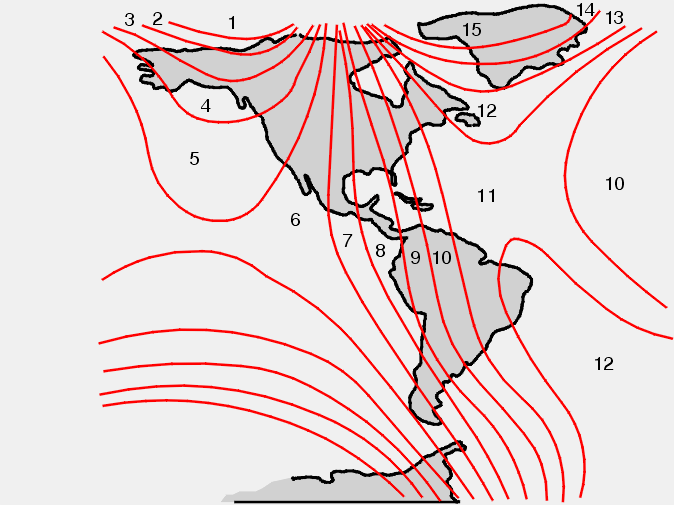

Fig 3: Identifying Geographical Area (2 of 2)

Courtesy of VOLVO CARS CORPORATION
