Paint, Sanding: Adjustment

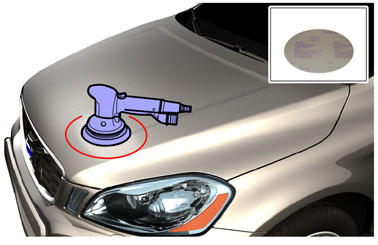

Fig 1: Identifying Sanding Tool
GLL169874Courtesy of VOLVO CARS CORPORATION

Use:  Sand paper P1500, USA: 3M 00950

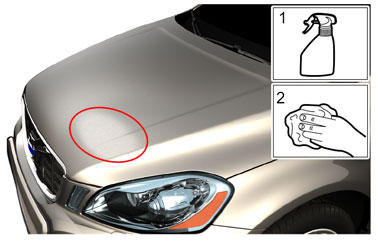

Fig 2: Identifying Cleaning Materials
GLL169878Courtesy of VOLVO CARS CORPORATION
  1. Use:  Cleaning agent, 1161721
  2. Use:  Drying cloth, USA: 3M 06016

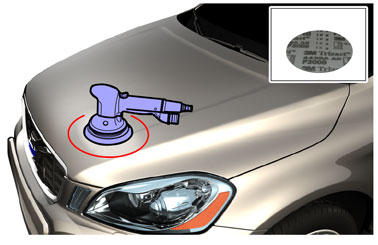

Fig 3: Identifying Sanding Tool
GLL169875Courtesy of VOLVO CARS CORPORATION

Use:  Water,

Use:  Sand paper P3000, USA: 3M 02085

Fig 4: Identifying Cleaning Materials
GLL169878Courtesy of VOLVO CARS CORPORATION
  1. Use:  Cleaning agent, 1161721

    See information on paint, grinding, and polishing, see PAINT, SANDING AND POLISHING

  2. Use:  Drying cloth, USA: 3M 06016

Perform paint job, polishing, see PAINT, POLISHING
