Position Of Bulbs

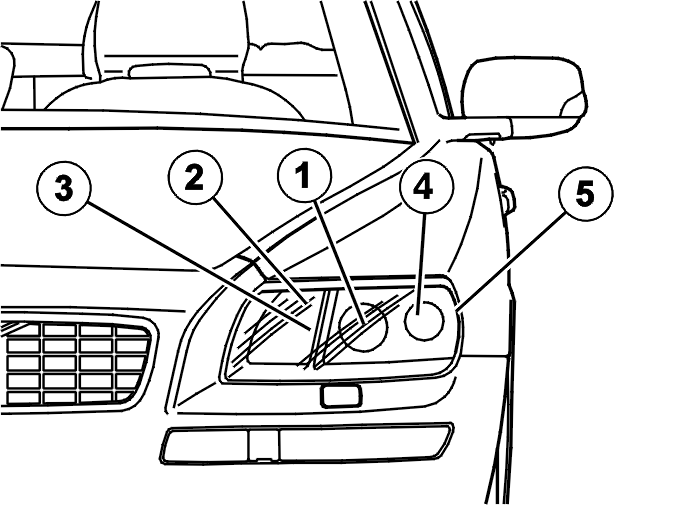

Fig 1: Locating Bulbs
GLL128529Courtesy of VOLVO CARS CORPORATION
  1. Low beam
  2. High beam
  3. Parking lights
  4. Direction indicators.
  5. Side marker lights
