Location Of Components

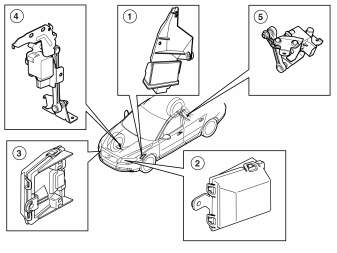

Fig 1: Locating Headlamp Control Module Components
GLL161795Courtesy of VOLVO CARS CORPORATION

Overview

  1. Headlamp Control Module (HCM)
  2. Left headlamp control unit (LHCU)
  3. Right headlamp control unit (RHCU)
  4. Front position sensor
  5. Rear position sensor
