Skid Plate, Front Bumper (2010-11)
>>
Skid Plate, Front Bumper
Skid Plate, Front Bumper

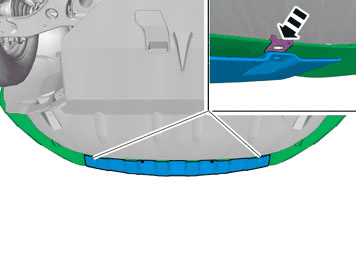

Fig 1: Identifying Spring Nuts
Courtesy of VOLVO CARS CORPORATION
Take the spring nuts from the kit and press them into the bumper cover.

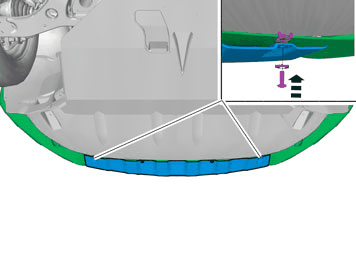

Fig 2: Tightening Skid Plate
Courtesy of VOLVO CARS CORPORATION
Tighten the skid plate at the outer ends.
Courtesy of VOLVO CARS CORPORATION
Courtesy of VOLVO CARS CORPORATION
