ALCOGUARD, Kit Number 30756979
- Activate (and calibrate) the alcohol lock.
The necessary software can also be found there.
- After installing the software on a PC according to the TJ, connect the alcohol lock to the PC using the supplied communication cable. A question asking whether to activate appears automatically (if the lock is not activated), otherwise nothing special happens.
- Turn the ignition switch to position 0.
NOTE:
Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
- Open the glovebox.
- Carefully pry off the panel inside the center console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
- Pull the panel off downwards.
- Remove the panel on the right end of the dashboard. Carefully pry it loose all around with a weatherstrip tool, until the three legs release.
NOTE:
Do not damage the dashboard.
- Detach the clip holding the nozzle from the glove compartment.
- Remove the glove compartment's rubber mat.
- Remove the five screws in the opening to the glovebox.
- Pull the glove compartment straight back to loosen the two hidden clips in the upper edge.
- Remove the outer section of the glovebox.
- Unplug the connectors on the top.

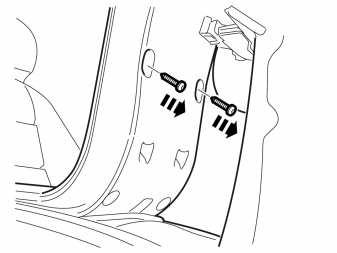

- Remove the two remaining screws at the rear of the center console.
- Put away the screws and get new ones from the kit.

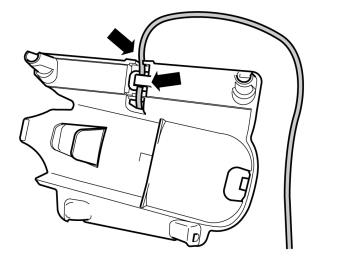

- Take the holder from the kit and insert the green connector in the lower hole and pull through the whole wire.
- Hook on the wire around the lip in the upper hole and place it in the slot at the top.
NOTE:
Be careful when tightening the bolts, as it is easy to tighten them in too far.
- Take the two longer screws from the kit.

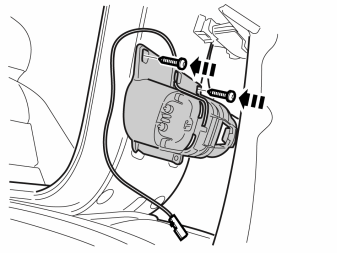

- Install the holder with the two screws in the upper edge and tighten.
- Tighten the bolts so that the head just has contact against the holder.
- Then tighten the bolts slightly more.
- Check that the holder is fastened at the top.
NOTE:
The lower holes are angled 45°
.

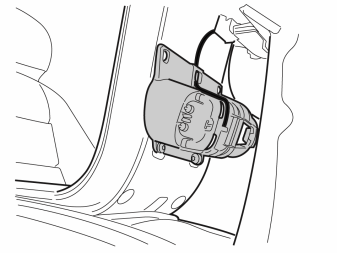

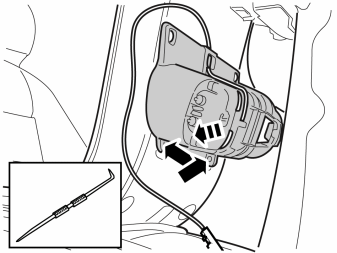

- Press the holder's middle part against the center console's rear side. Make a distinct mark through the middle of the hole in the holder with a scribe to get the self-tapping screw to center better.
- Repeat the operation on the other side.

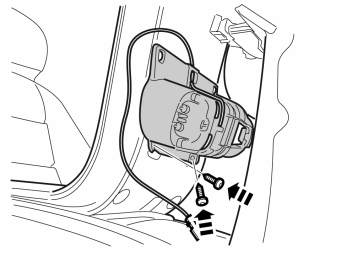

- Take the self-tapping screws from the kit and tighten them.

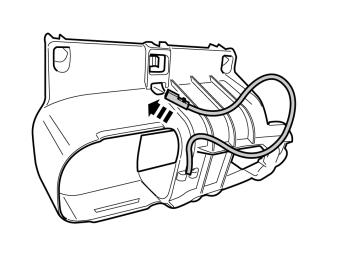

- File a slot in the panel for the holder's wire as shown.
- Pull up the wire from the holder to the green connector for the display.
- Clamp the wire to the connector's cable harness so that the wire reaches down to the holder and so that it fits in the slot in the panel.

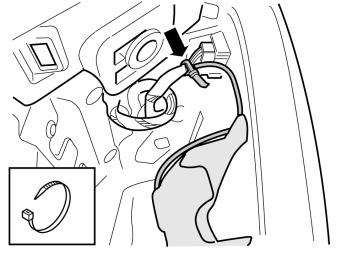

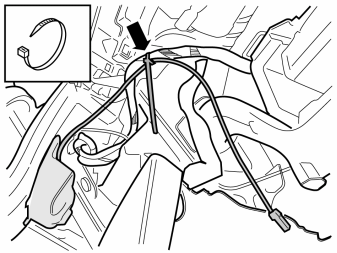

- Get the wire coming from the holder and attach it on the right side of the center console. The wire shall be attached to the existing cable harness with a cable tie from the kit.
- Drill a 10 mm (25/64") hole on the left side of the glove compartment's outer part.
- Remove any shavings.

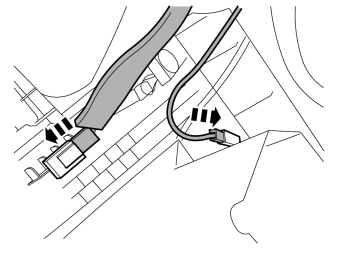

- Get the adapter wire from the kit and plug in one connector to the connection for the glove compartment lighting.
- Route the wires at the lower edge to the other side.
- Fasten the wires and the little green connector with pieces of butyl tape.
- Insert the little green connector and the whole wire in the glove compartment's outer part.
- Fasten the wire at the hole with a piece of butyl tape.
- Get the outer glove compartment and plug in the connector from the glove compartment lighting to the corresponding in the new adapter wire.
- Plug in remaining connector in the adapter wire for the glove compartment lighting.
- Plug in the green connector from the holder to corresponding on the adapter wire for the glove compartment lighting.
- Fasten the grey connector on the glove compartment's outer part.
- Install and tighten down the glove compartment's outer part.
- Roll up the wire in the glove compartment and fasten it with the Velcro strap.
- Fit the wire from the holder in the slot on the panel and press to fasten.
- Download the software for the accessory's function following the service information in VIDA (Volvo Scan Tool).
