Checking The Function

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS CORPORATION

• Ignition on
• Check the function of the switch on the tailgate by clicking on the VCT2000 symbol
• Press in the tailgate switch.

  The value should be Activated  when the switch is pressed in.

  HINT: If the switch status is activated when the switch is not pressed in, the fault is either in the switch or in the cable from the switch to the keyless vehicle module (KVM).

  Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

  Courtesy of VOLVO CARS CORPORATION

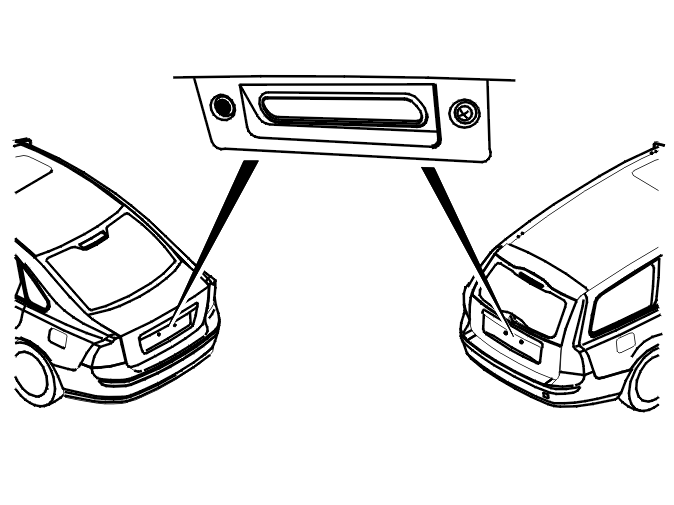

  Fig 3: Identifying Tailgate Handle

  Courtesy of VOLVO CARS CORPORATION

Is the function OK?

• YES

  Refer to VERIFY

• NO

  Refer to CHECKING THE WIRING
