Fault-Tracing Information

Condition

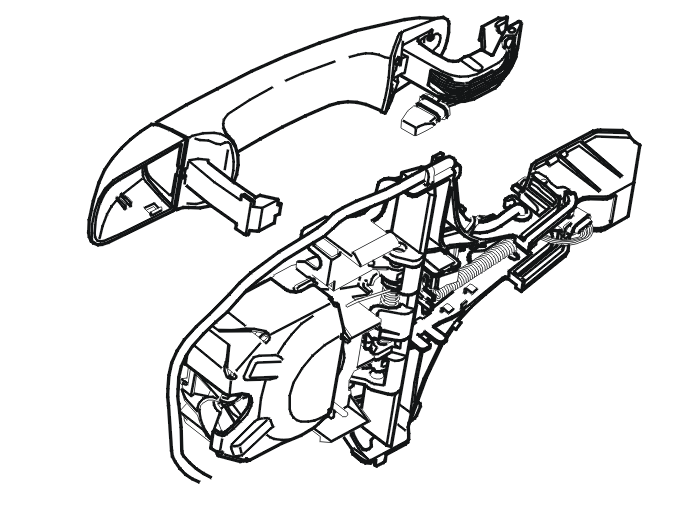

Fig 1: Identifying Outer Handle & Bracket With Switch

Courtesy of VOLVO CARS CORPORATION

Diagnostic Trouble Code (DTC) missing and permanent fault.

Substitute Value

• None.

Possible Source

• Open-circuit in the signal cable to the switch, outer door handle
• Short-circuit to ground in the signal cable for the switch, outer door handle
• Switch, outer door handle faulty.

Fault symptom[s]

• Delayed unlocking of the door.
