Checking For An Open-Circuit

Check the cable between the fuse holder secondary side (left) and terminal #5 in the relay base. Check for an open-circuit.

Other information

• To access the rear electronic module (REM), see RELAY/FUSE BOX CARGO COMPARTMENT/REAR ELECTRONIC MODULE (REM), REPLACING
• see CHECKING WIRING AND TERMINALS .

Fig 1: Identifying Ohmmeter

Courtesy of VOLVO CARS CORPORATION

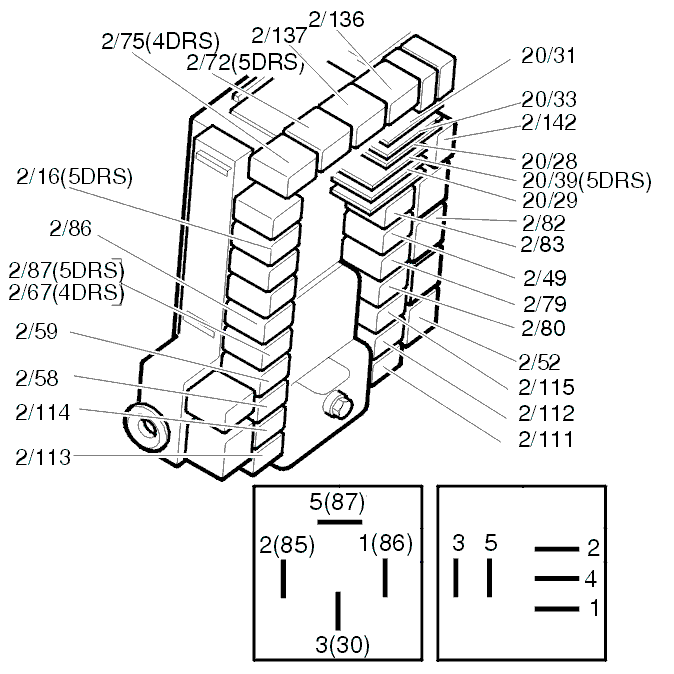

Fig 2: Identifying Relays

Courtesy of VOLVO CARS CORPORATION
