Location Of Components

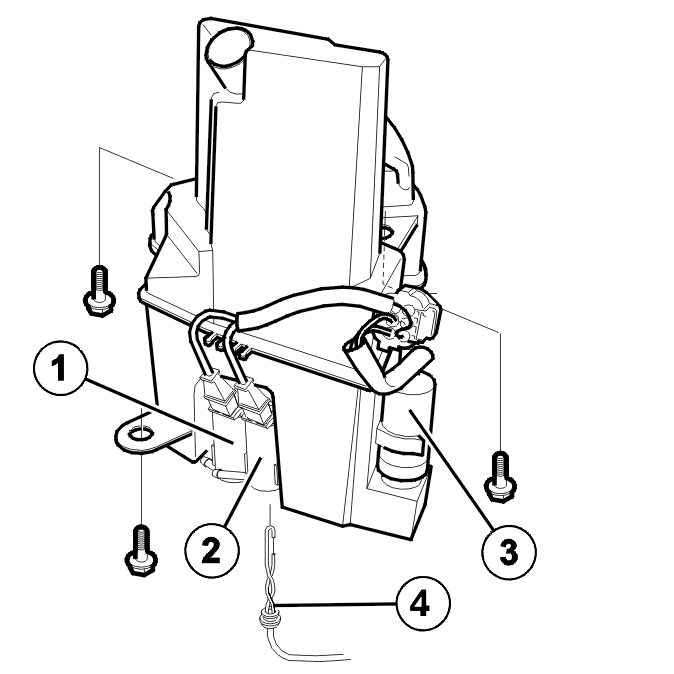

Fig 1: Identifying Windshield Washer Fluid Reservoir Components
GLL101882Courtesy of VOLVO CARS CORPORATION
  1. Windshield washer motor
  2. Rear windshield washer motor
  3. Headlamp washer motor, high-pressure
  4. Level sensor.
