Exposing The Integrated Relay/FUSEBOX In The Cargo Compartment

Switch off the ignition.

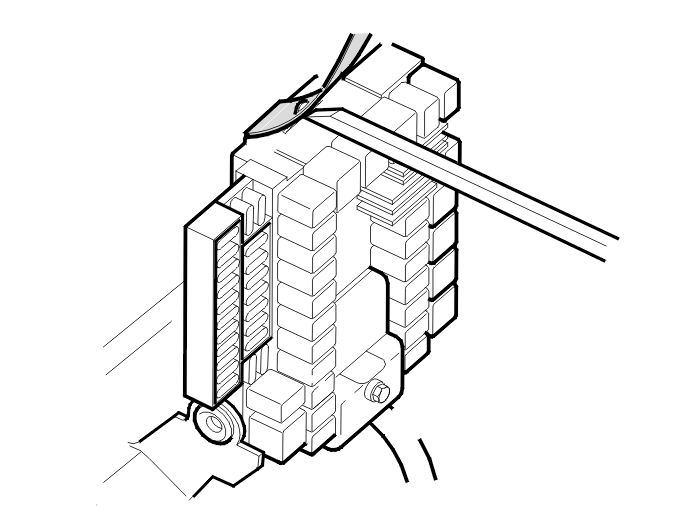

Fig 1: Lifting Cargo Compartment/Rear Relay/Fusebox Catch

Courtesy of VOLVO CARS CORPORATION

Remove the left side panel in the cargo compartment.

Release the integrated relay/fusebox. Lift the catch by the upper edge and angle out the integrated relay/fusebox.

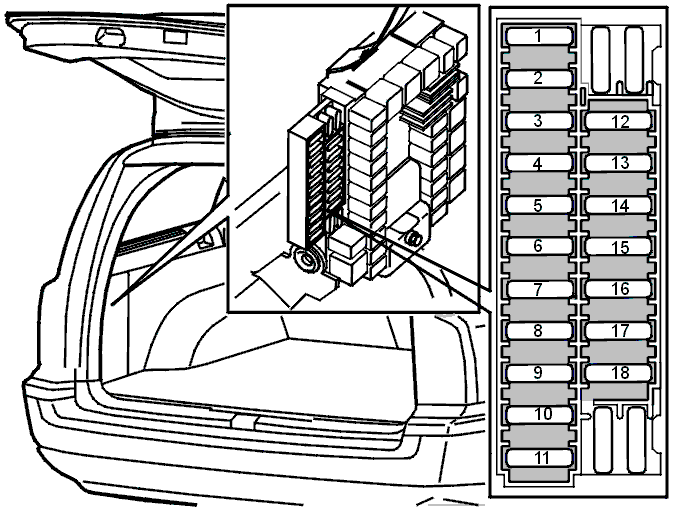

Fig 2: Cargo Compartment/Rear Relay/Fusebox Fuse Locations

Courtesy of VOLVO CARS CORPORATION

HINT: The rear panel in the side panel of the cargo compartment can be removed to change fuses.
