Removing The Muffler

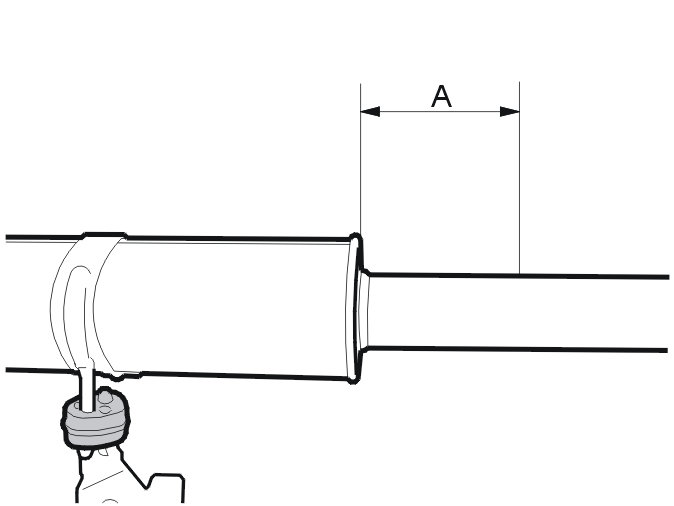

Fig 1: Identifying Measurement A

Courtesy of VOLVO CARS CORPORATION

Applies at the first change

Cut between the front and center exhaust pipe to create an 85 mm pipe sleeve. Measure from the rear end of the front muffler. See A  in illustration.

Remove:

• the M10 nut for the clamp between the rear and center muffler
• the rubber mountings from the muffler
• the center muffler.

Applies to the second or later changes

Remove:

• the M10 nut for the clamp between the front and center muffler
• the M10 nut for the clamp between the rear and center muffler
• the rubber mountings
• the muffler.

HINT: Tap carefully around the joint to crack any rust and soot deposits in the joint. Use a hammer.
