Induction Pipe: Removal

Remove the following items:

• See THROTTLE BODY
• See FUEL INJECTOR

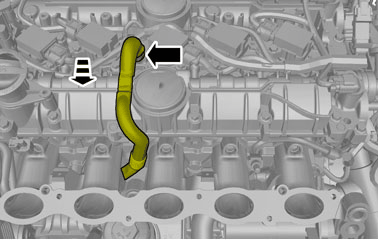

Fig 1: Identifying Breather Tube with Plenum Removed

Courtesy of VOLVO CARS CORPORATION

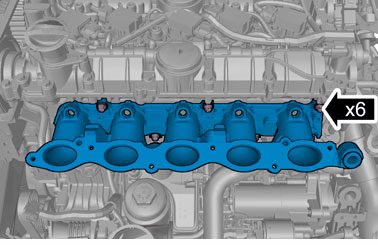

Fig 2: Intake Manifold Bolt Identified

Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

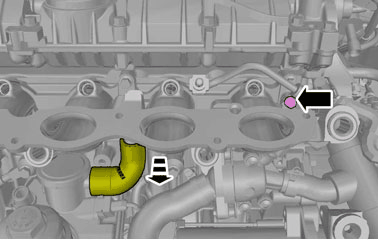

Fig 3: Locating Additional Bolts

Courtesy of VOLVO CARS CORPORATION

Torque:  M7

17 Nm
