Catalytic Converter: Removal

NOTE: Removal steps in this procedure may contain installation details.

Perform flange joint, assembly. See FLANGED JOINT, ASSEMBLING

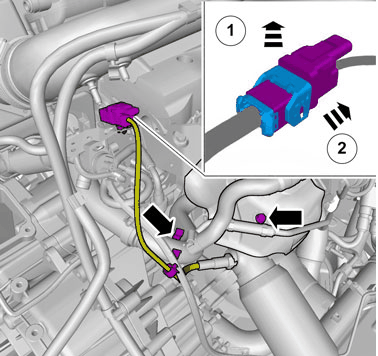

Fig 1: Identifying Sensor Connector and Clip

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

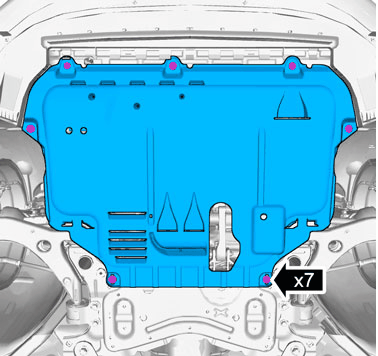

Fig 2: Locating Splash Panel Screws

Courtesy of VOLVO CARS CORPORATION

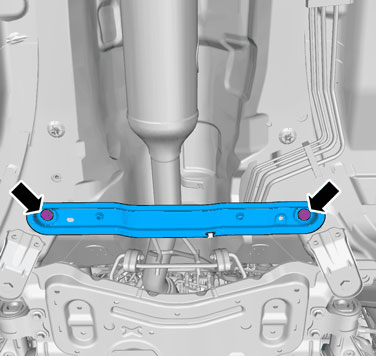

Fig 3: Locating Catalytic Converter To Turbocharger Nuts

Courtesy of VOLVO CARS CORPORATION

Torque: Catalytic converter to turbocharger

24 Nm

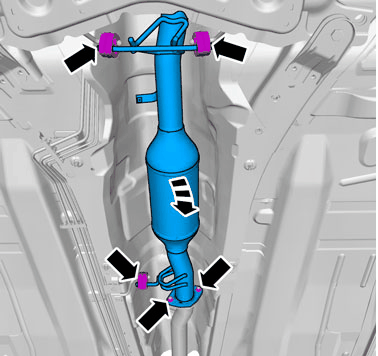

Fig 4: Identifying Oxygen Sensor Socket And Connector

Courtesy of VOLVO CARS CORPORATION

Torque: Catalyst monitor sensor

45 Nm

Fig 5: Identifying Reinforcement Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

Fig 6: Locating Hangers and Fasteners

Courtesy of VOLVO CARS CORPORATION

Torque: Catalyst to exhaust system

24 Nm

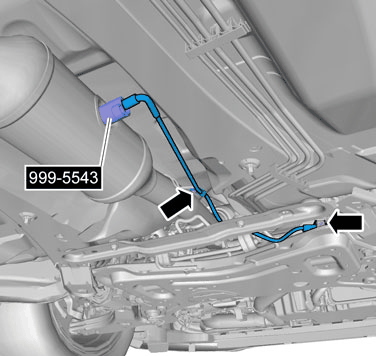

Fig 7: Identifying Oxygen Sensor Socket (9995543)

Courtesy of VOLVO CARS CORPORATION

Torque: Catalyst monitor sensor

45 Nm
