Catalytic Converter: Removal

NOTE: Removal steps in this procedure may contain installation details.

Perform flange joint, assembly, see FLANGED JOINT, ASSEMBLING

Remove oxygen sensor (lambda probe) see OXYGEN SENSOR (CATALYST MONITOR SENSOR)

Fig 1: Identifying Reinforcement Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M8

24 Nm

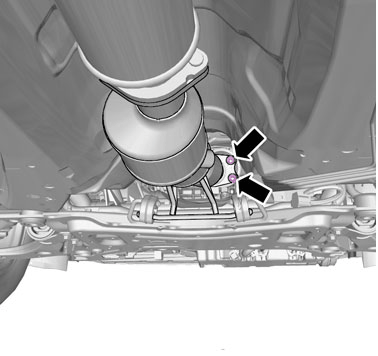

Fig 2: Locating Catalytic Converter Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: Catalyst to exhaust manifold

27 Nm

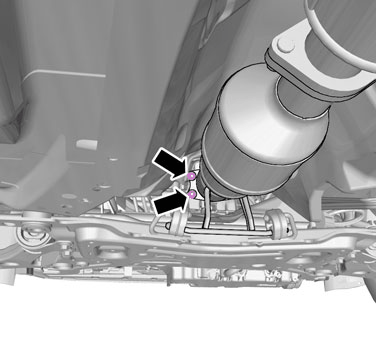

Fig 3: Locating Catalytic Converter Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: Catalyst to exhaust manifold

27 Nm

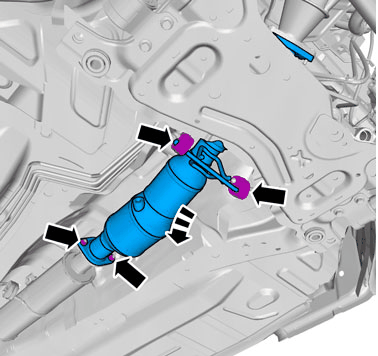

Fig 4: Locating Catalytic Converter Bolts And Exhaust Hangers

Courtesy of VOLVO CARS CORPORATION

Torque: Catalyst to exhaust system

24 Nm
